Eyeliner’s optically-clear, flame-retardant foil has achieved M1 (France) fire classification, the most stringent
polymer fire safety certification in the holographic display industry. M1 is the gold standard for permanent public venue installations, and Musion 3D Eyeliner foil is engineered to meet it. For venue operators and production companies specifying permanent holographic installations, fire compliance certification is a critical procurement requirement – Musion 3D F1-Certified (2026) foil is manufactured to satisfy the most demanding specifications globally. The vast array of imitation foil on the market fails to meet these stringent standards and many are highly flammable.
Certifications: EU-B1 | BS EN 1101/1102 | FCBA M1 | ASTM E 84 | NFPA 701
| Scale | Rig Width | Typical Applications |
|---|---|---|

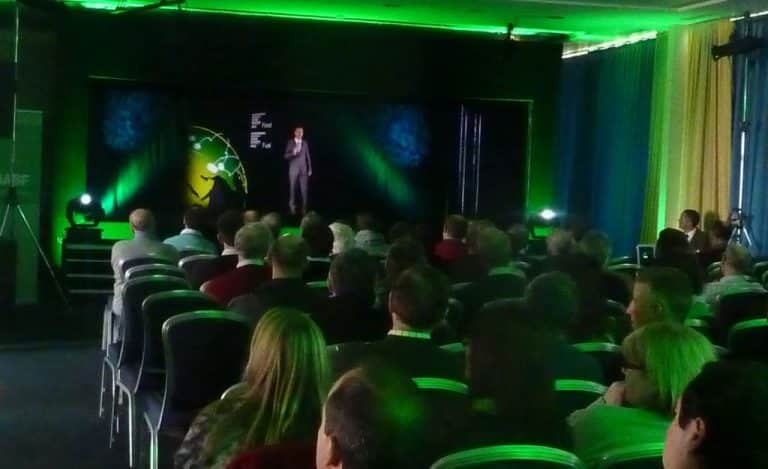

| Corporate / Intimate / Museum | 4m – 8m | Product launches, corporate events, conference keynotes, intimate venue performances, historical reenactments |
| Theatre / Performance Venues | 8m – 20m | West End / Broadway-scale shows, music venue integrations, brand activations, award ceremonies |
| Arena / Major Activations | 20m – 40m | Concert venues, large-scale brand events, touring productions, government addresses |
| Landmark / Record | Up to 100m+ | Stadium shows, architectural-scale installations, national events, Guinness World Record: 50m wide (Dubai, 2015) |
EyeLiner is the display layer for AI-generated performers. Musion’s Holicom filming process captures talent in a controlled environment and outputs content that is directly compatible with AI-enhanced post production, so a performance can be shot once and deployed across the full range, from a 4 metre corporate install to a stadium-scale stage.
AI has reduced holographic content production costs by up to 80%. What previously took months of Hollywood VFX now takes weeks, which makes venue-scale holographic performance viable for a far wider range of productions than it was even three years ago.
EyeLiner™ is the larger and most popular of Musion’s product offerings. There is no practical size limit as the screen can be to up to 100m wide. Standard apparatus tend to be 4m – 10m wide and 4m – 7m deep. Typical image size from a single projector is approximately 5m wide by 3m high (conversion: 16.4ft by 9.8ft).

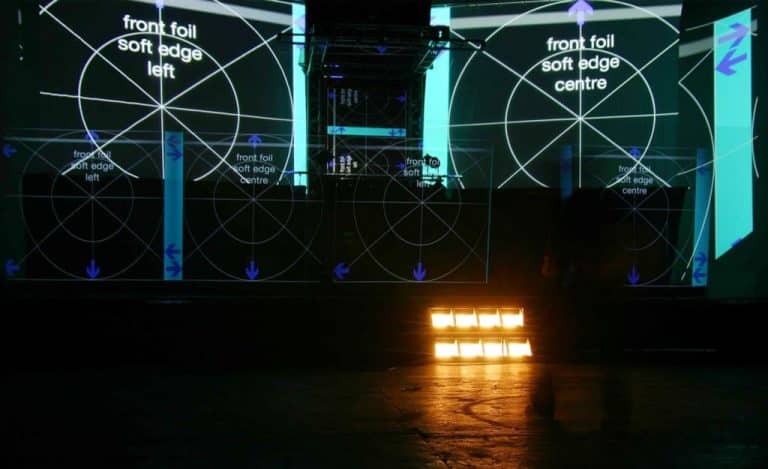

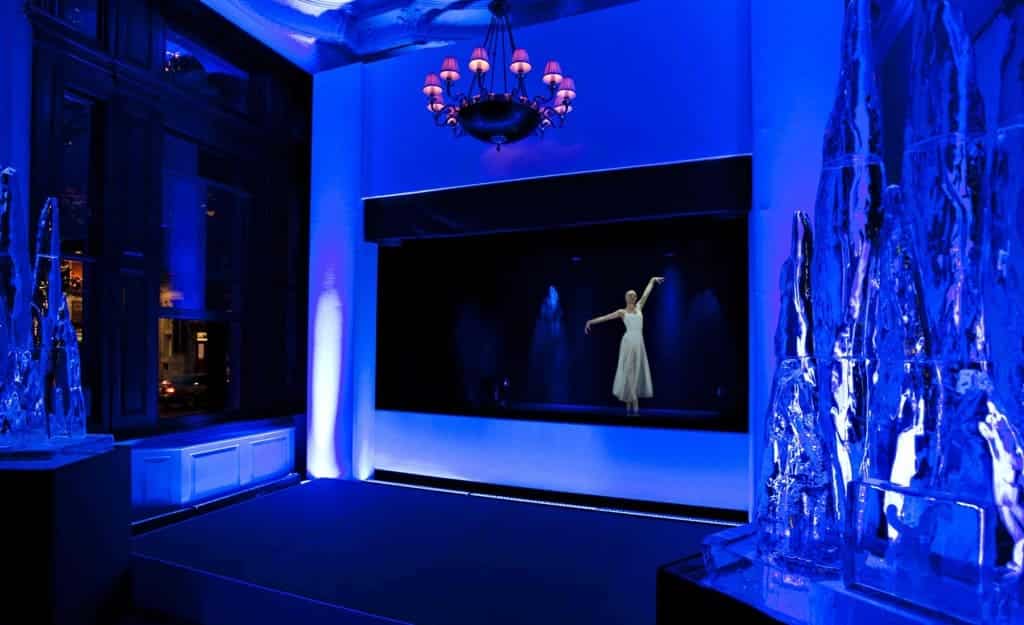

The Musion projection system incorporates a ‘performer’s stage’ that is equipped with state of the art LED lighting and is usually boxed with hard panelling or dark draping along the sides and back of the system. The polymer screen sits on a 45˚ angle between the stage and the audience and at least one high powered, high definition video projector is mounted in front of the foil, projecting onto either the floor or ceiling depending on foil orientation. Live or pre-recorded shows can be shown on the Eyeliner™ unit. Eyeliner™ optimized content is typically stored on blank magnetic data carriers such as hard drives, video tapes or blueRay disks and played via data-processing equipment such as HD media players or MAC towers.

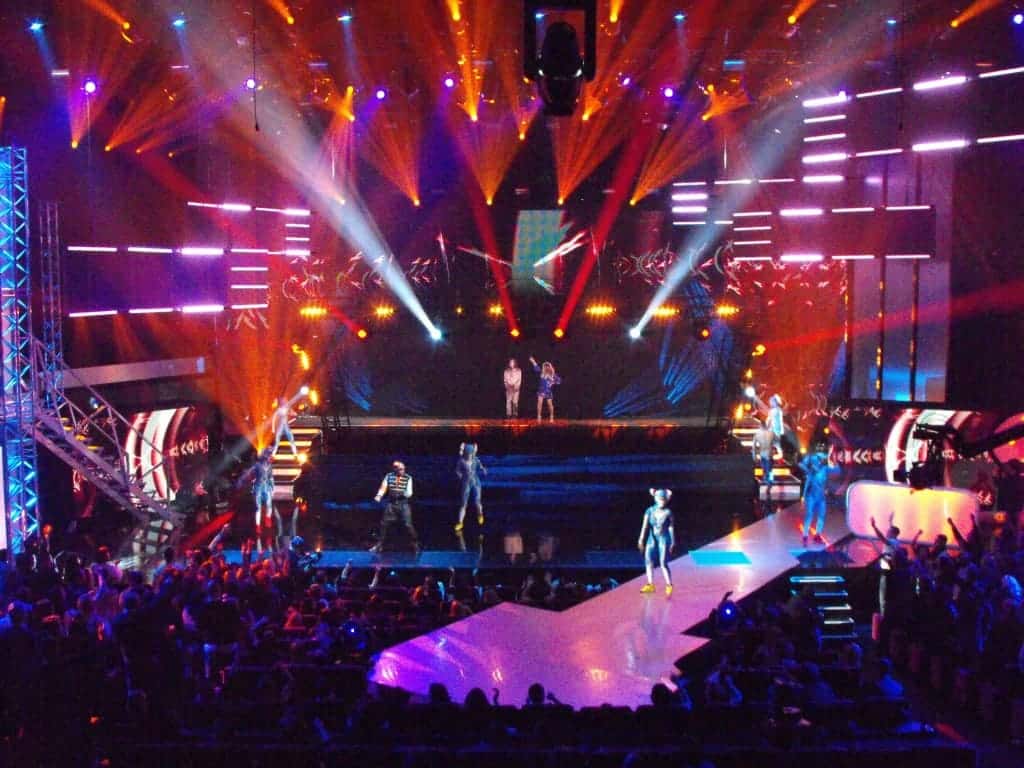

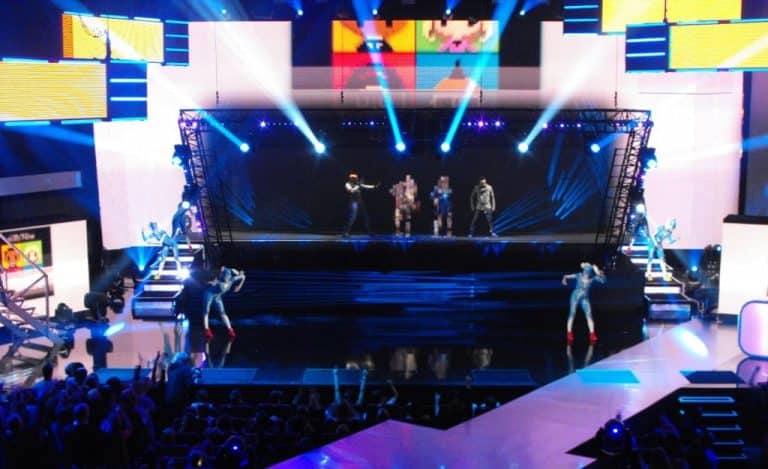

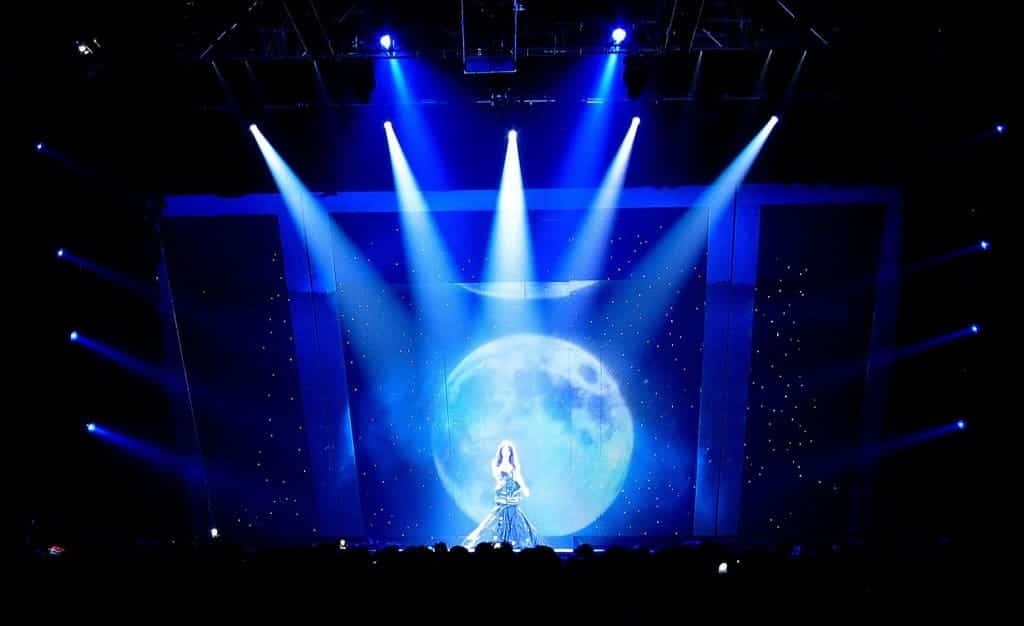

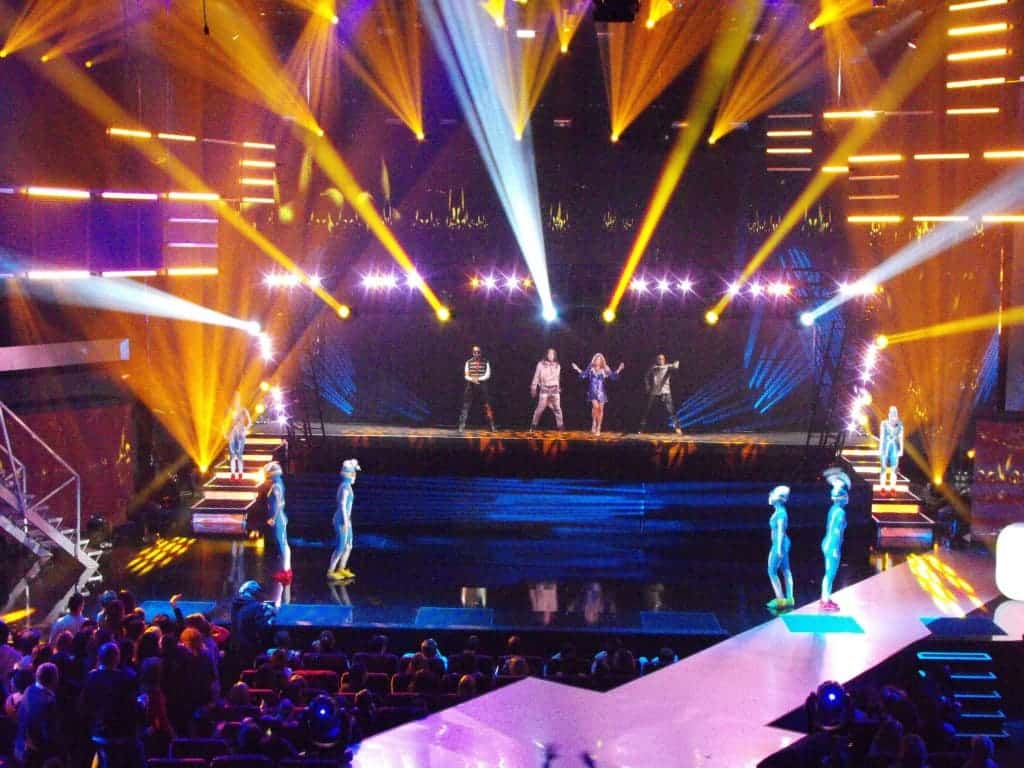

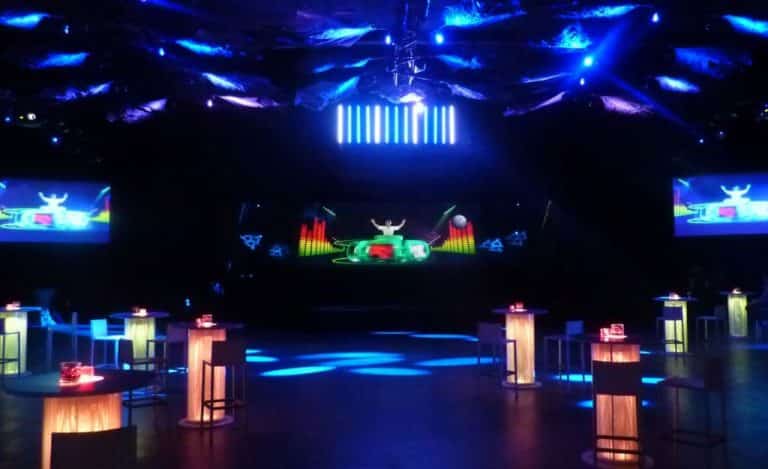

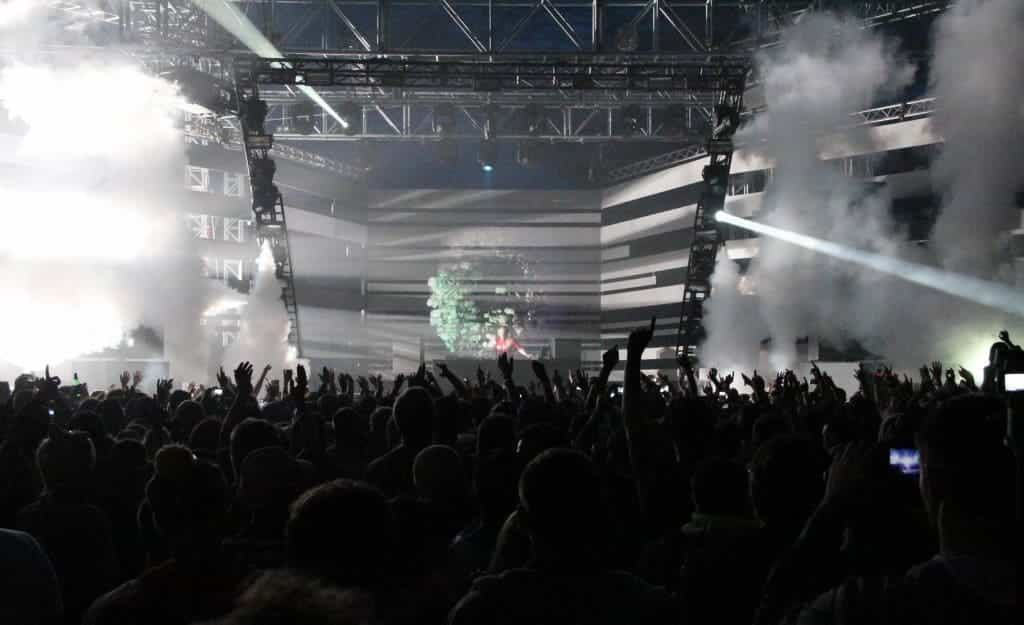

The Musion EyeLiner™ holographic projection system is designed to work in public performance areas such as concert venues, theatres, exhibition centres, nightclubs, marquees, large office environments, retail stores and TV studios.
Related Musion Products
Have you seen EyeCandy? It’s the smaller and more intimate version of EyeLiner™, ideal for smaller venues with limited space.
Price on Application
Every EyeLiner installation is quoted to the venue, the audience position and the content requirement.
